SUN-3K-SG04LP1-24-EU-SM1

12 Views

Introducing the advanced series of Single Phase Hybrid Inverters by Deye, meticulously designed to bolster the efficiency, reliability, and adaptability of solar power systems. This series includes models SUN-3K-SG04LP1-24-EU-SM1, SUN-3K-SG04LP1-EU-SM1, and SUN-3.6/5/6K-SG04LP1-EU-SM2, catering to diverse energy needs with impeccable performance both in on-grid and off-grid settings.

Get a Quote

Category :

Deye

Description

Key Features

High Charging/Discharging Capacity: These inverters boast a maximum charging and discharging current of up to 140A, allowing for substantial energy storage. This makes them ideal for high-demand applications, homes, businesses, and integration with diesel generators.
Parallel Operation: To meet growing energy demands, Deye’s inverters support up to 16 units in parallel connection. This feature provides scalable solutions, ensuring system stability and efficiency as energy needs expand.
Battery Compatibility: Deye’s hybrid inverters are versatile, supporting both lead-acid and lithium-ion batteries. They adapt their charging strategies based on the Battery Management System (BMS) of the batteries, optimizing performance and extending battery life.
Retrofit Capability: These inverters can be AC coupled to retrofit existing solar systems. This ensures a smooth transition to more advanced energy management systems without the need to replace existing solar setups.

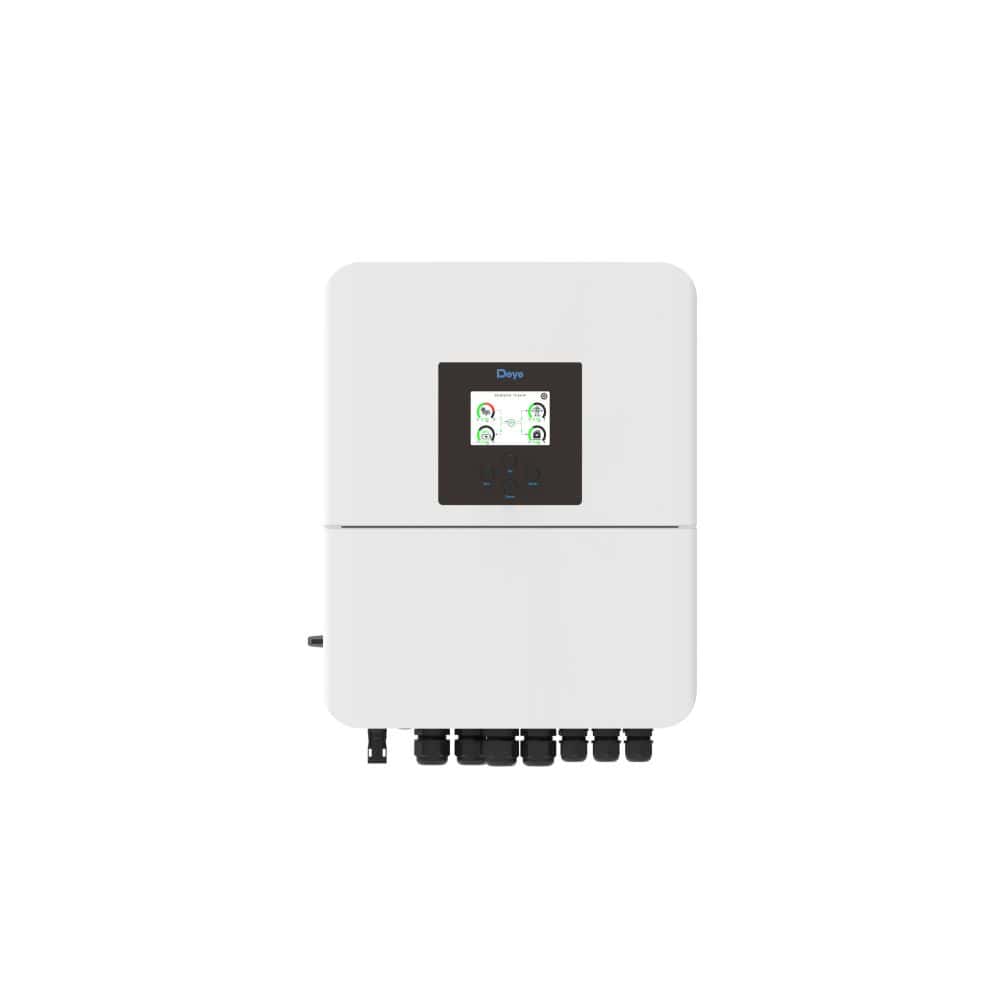

User-Friendly Interface: They come equipped with a colorful touch LCD, making them easy to monitor and control. Additionally, with an IP65 protection rating, these inverters are highly durable and resilient to environmental factors, ensuring longevity and reliability.
Smart Battery Management: With six programmable time periods for battery charging and discharging, these inverters allow for optimal energy use based on varying tariffs and load demands, enhancing cost-efficiency and energy management.

Technical Specifications

Battery Input Voltage Range: 20-30V/40-60V
Maximum Efficiency: Up to 97.6%
Euro Efficiency: 96.5%
MPPT Efficiency: >99%
Total Current Harmonic Distortion (THDi): <3%
DC Injection Current: <0.5% of nominal current

Protection and Safety

Integrated DC polarity reverse connection protection
AC output overcurrent, over-voltage, and short circuit protection
Thermal protection and ground fault monitoring
Surge protection: Type II for both DC and AC sides
Compliance with international safety and EMC standards like IEC/EN 62109-1 and IEC/EN 62109-2 guarantees reliable and safe operation

Environmental and General Specifications

Operating Temperature Range: -40°C to +60°C, with derating above 45°C
Permissible Humidity: 0-100%
Maximum Operating Altitude: 2000m
Noise Levels: <30 dB, ensuring quiet operation
Ingress Protection Rating: IP65, making them robust against environmental challenges
Overvoltage Categories: OVC II (DC) and OVC III (AC)
Dimensions: 376×470×241.5 mm (excluding connectors and brackets)
Cooling: Natural cooling to maintain optimal operating temperatures
Warranty: Five to ten years, depending on the installation site and adherence to the warranty policy

Additional Features

Diverse monitoring modes including GPRS, WIFI, Bluetooth, 4G, and optional LAN connectivity
Communication Interfaces: RS485, RS232, and CAN, allowing seamless integration with existing systems

Applications

These inverters are ideally suited for residential, commercial, and industrial applications. By harnessing advanced technology and flexible configurations, Deye ensures a robust and future-proof investment in renewable energy. Whether for new installations or retrofitting existing solar systems, the Deye Single Phase Hybrid Inverter series offers a comprehensive, user-friendly, and highly efficient solution to meet the growing demands of the renewable energy sector.

Get a Quote
