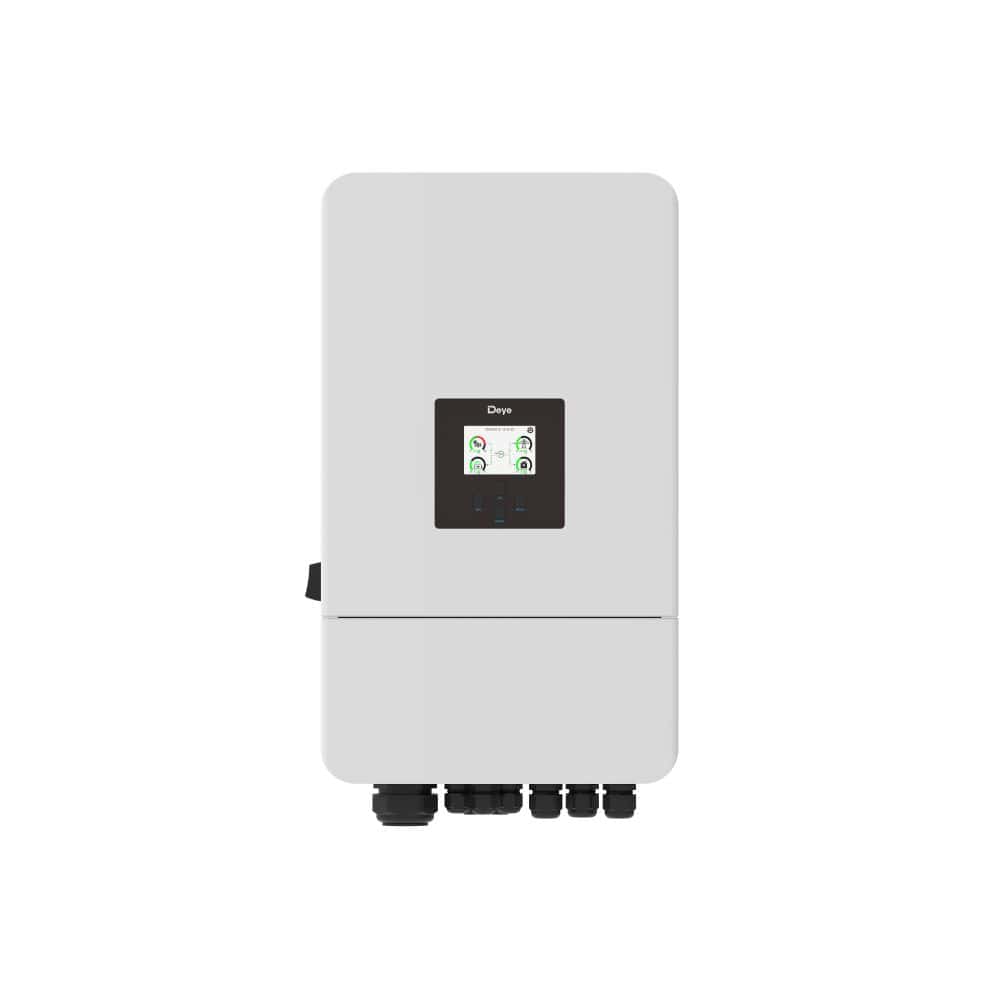

SUN-8/10/12K-SG05LP3-EU-SM2

Introducing the SUN-8/10/12K-SG05LP3-EU-SM2, a state-of-the-art three-phase hybrid inverter. This advanced inverter exemplifies power, efficiency, and versatility, making it an optimal choice for both residential and commercial applications. The inverter seamlessly integrates with various power sources, including solar panels, batteries, and diesel generators, to ensure reliable and sustainable energy management.

Category :

Key Features

Battery Compatibility and Charging

  • Adaptive Battery Support: Supports both lead-acid and lithium-ion battery types, offering flexibility for users with different storage requirements.
  • Voltage Range: Operates within a battery voltage range of 40-60V.
  • High Current Capabilities: Features a maximum charging and discharging current of 240A, ensuring quick and efficient energy transfer.
  • Self-adaptive Charging: The inverter adapts to the Battery Management System (BMS), optimizing the charging strategy and ensuring safety and longevity of the batteries.

PV Input Characteristics

  • High Input Power: Accommodates maximum PV input power of 12,000W (SUN-8K), 15,000W (SUN-10K), and 18,000W (SUN-12K), allowing for extensive solar array setups.
  • Wide Voltage Range: With a maximum PV input voltage of 800V and an MPPT voltage range of 200-650V, it captures solar energy efficiently.
  • Dual MPPT: Equipped with two Maximum Power Point Trackers (MPPT), this inverter ensures optimal energy harvest from the solar panels.

AC Output Features

  • Robust Power Output: Provides a rated AC output active power of 8,000W (SUN-8K), 10,000W (SUN-10K), and 12,000W (SUN-12K), catering to various electrical demands.
  • Phase Balance: Capable of 100% unbalanced output per phase with a maximum output up to 50% of rated power.
  • Flexibility: Supports both on-grid and off-grid operations with a parallel capacity of up to 10 units, accommodating growing energy needs.

Efficiency

  • High Efficiency Rates: Boasts a maximum efficiency of 97.6% and Euro efficiency of 97.0%, ensuring minimal energy loss during conversion.
  • Superior MPPT Efficiency: Achieves an MPPT efficiency of over 99%, ensuring maximum energy harvest from solar panels.

Protection and Safety

  • Comprehensive Protection Suite: Includes overcurrent, overvoltage, short circuit, thermal protection, and residual current detection, safeguarding both the inverter and the connected equipment.
  • Advanced Monitoring: Features DC polarity reverse connection protection, DC terminal insulation monitoring, and surge protection (Type II for both DC and AC).

Environmental and Physical Specifications

  • Wide Operating Temperature Range: Suitable for harsh environments with an operating temperature range of -40 to +60 ℃, featuring derating above 45℃.
  • Noise and Humidity: Operates quietly at ≤55 dB and supports a wide range of humidity levels (0-100%).
  • Durability: Rated IP65 for dust and water resistance.
  • Compact and Lightweight: Dimensions of 386x660x253 mm and a weight of 35.2 kg make for easy installation and handling.
  • Optimized Cooling: Intelligent air cooling system maintains optimal operating conditions.

Communication and Monitoring

  • Versatile Communication: Offers monitoring options via GPRS, WIFI, Bluetooth, 4G, and LAN (optional) and is equipped with RS485, RS232, and CAN interfaces for enhanced connectivity.

Standards and Certification

  • Regulatory Compliance: Adheres to international grid regulation and safety standards, including IEC 61727, IEC 62116, EN 50549, and more, ensuring safe and reliable operation.

The SUN-8/10/12K-SG05LP3-EU-SM2 not only offers superior performance and reliable power conversion but also ensures flexibility and safety in various applications.
